  • 100% compatible solutions for Adtran, Alcatel,
    Calix, Ciena, Cisco, Fujitsu, Juniper and more

  • Delivering first-to-market compatibility solutions
    in the most rigorous, networking environments.

  • Most advanced third-party engineering,
    programming and testing facility in industry.

  • Telco certified and compatible with
    all major Telecom hardware OEMs.

  • Solutions from 100Mb (OC-3)
    to 100Gb (OC-768).

  • Deliver in days what it takes the
    OEMs months to provide.

  • Over 14 years experience in optical
    transceiver programming and testing.

With over 14 years of leadership in the design and engineering of third party optical transceivers and components, Approved Networks is a trusted provider of quality solutions for the telecommunications industry. Specializing in the engineering, testing and packaging of metro, regional, long haul and optical transport networks, Approved is considered an industry authority for providers looking to increase savings while requiring 100% compatibility in their OEM telecommunication switch and router environment.

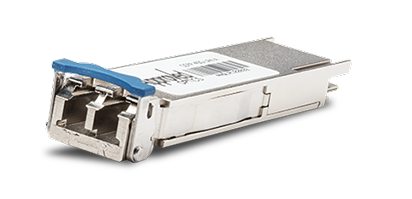

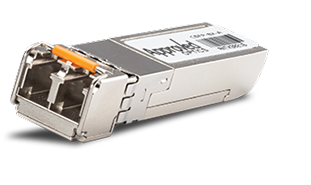

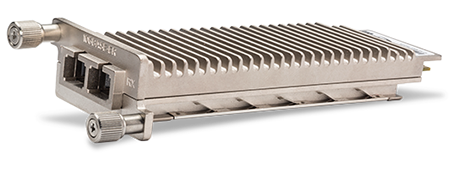

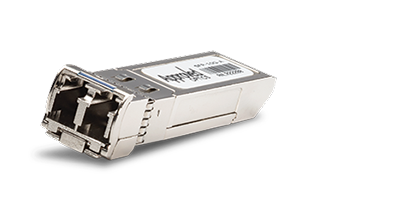

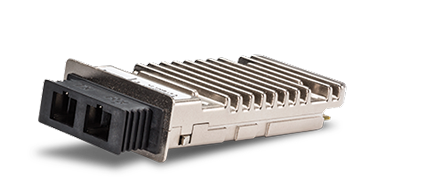

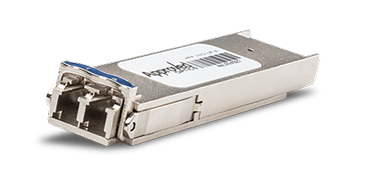

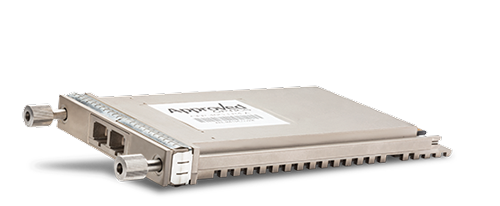

SFP | CSFP | XENPAK | X2 | XFP | SFP+ | QSFP+ | CFP/CXP

ABOUT APPROVED NETWORKS

We are Approved Networks

Approved Networks is the industry authority on carrier class, third-party networking products for the telecommunications industry. For over a decade our technical expertise has allowed us to consistently deliver first-to-market compatibility solutions in the most rigorous optical networking environments. Headquartered in Los Angeles, Approved Networks provides technical, logistical and sales support to over 3,000 clients in 30 countries.

Approved Networks' core competencies include: transceivers, direct attach cables, fiber cabling and cable management. Because we partner with the largest global contract manufacturers, we’re able to provide customers with high quality, cost-effective solutions in direct contrast to the budget prohibitive prices commonly associated with OEM networking products.

In addition to our extensive product line, our customer service has earned us a reputation of trust that is unparalleled in the industry. We help clients navigate the complexities of their hardware architecture to guarantee compliance throughout the network. Our service success is proven by the loyalty and support of some of the largest data centers in the world, including: telecommunications, corporations and government agencies.

As the networking industry continues to move toward a more complex standard in optical architecture, increasingly stringent test equipment and higher standards are imperative. Transceivers running over multiple fibers at speeds of up to 120GB demand precise programming and state-of-the-art testing. To ensure true compatibility, customers need products that have been programmed – and tested – by industry leading experts.

Approved Networks invests heavily in technology, a practice that allows us to expertly use cutting-edge test equipment on each module we provide, ensuring its precise programming. In our Environmental Test Lab, every transceiver is run through an extensive series of platform diagnostic tests. All Approved products also endure a rigid, physical network emulation test. This state-of-the-art procedure provides comprehensive benchmark measurements and performance analysis of the optic in both real world and customer specific application flows. An Approved Networks product only goes to market after compatibility and performance (at-speed in its intended OEM operating environment) has been absolutely proven.

Through our Environmental Test Lab and the continued enhancements of our testing procedures to keep pace with the fast-moving industry, Approved Networks has set the standard for networking compatibility and reliability. This level of commitment ensures our customers always receive products and service of the highest quality.

TESTING

Industry leading provider of optics testing and validation

New standards for high-speed ethernet and optical transport require increasingly stringent testing. For over 14 years, telecom and data centers worldwide have utilized Approved Networks' state-of-the-art lab to ensure full compliance of our optics within their environment to both extend the value of their network and improve its performance. Testing is and always will be the cornerstone of Approved Networks' success.

Approved Networks tests its optics at every major point along the production line, from auditing contract manufacturing facilities, to advanced functional, platform and network testing upon arrival to Approved Networks' US laboratories located along the coast of Southern California.

Transceiver Performance Testing

Each module shipped from Approved Networks undergoes a rigorous testing process prior to programming, including:



 • Compliance Verification for Distance

 • Wavelength

  Traffic Density

  Light



Environmental Test Facility

After being programmed for complete compatibility, modules are then tested in their intended switch/platform. Virtually every manufacturer is represented in Approved Networks' production test bed in California.

Due to our long-standing Telecom relationships, Approved Networks uses Aeroflex/Shenick for our network emulation testing platform. Aeroflex/Shenick is a fully virtualized test and measurement solution that can emulate and measure millions of unique application flows. The test provides comprehensive measurement and performance analysis on each application flow, easily and accurately locating and isolating problematic flows. Performance analysis of the optic in both real world or customer specific application flows are the only true way to guarantee design integrity and complete optical compliance.

* In today's third party market, testing is quite often the most confusing aspect when selecting a third party vendor. Everyone says they have a 100% tested third party optic. But truth be told, very few, if any online vendors actually test their product. They simply don't have the resources to do it. They buy cheap, un-tested optics from overseas brokers and reship them without so much as taking inventory of the serial numbers they ship to you. These practices have negatively affected the IT industry for decades, and in turn play a big part in Approved Networks' educational process with its customers. Approved Networks is committed to transparency between its test capabilities and your particular needs. Please call your Approved Networks rep for any questions regarding its testing capabilities.

Approved Network's environmental test bed includes:

3COM

2928

2948-SFP PLUS

3870-24

4500G-24

7450



Adtran

NetVanta 838

NetVanta 1534P

NetVanta 1638

Opi-6100

Total Access 5006



Adva

FSP150CCF



Alcatel

1850 TSS-3

OmniSwith 6400

OmniSwitch 6850-U24X

6250

7360

7210 Service Access Switch

7750 Service Router (SR)



Arista

DCS-7040T-4S

DCS-7050S-64

DCS-7124S

DCS-7250QX-64-R

DCS-7280SE-68



Brocade/Foundry

5100

FastIron FCX624S-POE

FastIron GS648P-POE

Fastiron SuperX

Silkworm 200E

Silkworm 3200

NetIron MLX-8

TurboIron 24X

ICX 6450

ICX 7450

ICX 7750

VDX 6710

VDX 6740

BTI

700 Series

800 Series



Calix

B6

E7



Ciena

CN-3930

CN-3960

CN-6500

LE-310



CISCO

1841

2811

2921

2940

2960

2960G

3500XL

3560

3560 E

3600

3750X

3845

3900

3925

4500X

4948E

4948-10GE

6500

6503

9120

ASR920

ASR1002F

ASR9001

CE500

CRS-1

MDS-9020

MDS-9120

MDS-9148

IE-3000

IE-3010

ME2400

CISCO CONT.

ME3400

Nexus 2248PQ

Nexus 3064PQ

Nexus 3232C

Nexus 5010

Nexus 5548P

Nexus 6001

Nexus 7004

Nexus 9396

WS-C4948

ONS-15454

ONS-15310

CTX 2500

CE-MR-6



CYAN

Z22



Dell/Force10

PowerConnect 2824

PowerConnect 5324

S60

SA-01-GE-48T

S-50-01-GE-48T-AC

S4810



EMC

DS-24M2



Enterasys

A2H124-24

C5G124-24P2

C5G124-48P2



Extreme

200-24

Summit X650-24

Summit 4851

X450-48T



Gigamon

GigaVU-MP



H3C

A5120

S5500

S5820X



HP

2520-8 POE

2810-48G

2824

4200Vl

5406ZL

J8707A

J9536A

J9309A

J8705A

5900AF-48XG-4QSFP+

Procurve 2510 – J9020

Procurve 2910

Procurve 3500YL – J8692A

Procurve 5900

Procurve 6600-24G-4XG

StorageWorks 4/8 & 8/8

StorageWorks 2/16

Virtual Connect Flex-10



IBM

BladeCenter 46C7191

Blade Networks G8000

Blade Rack Switch G8124

Blade Rack Switch G8264T

Juniper

EX-3200

EX-3300

EX-4200

EX-4300

EX-4600

SRX650

MX80

MX240

QFX 3500

QFX 5100

QFX 10002

Linksys

SGE2000

SPS208G



McData

ED-6064



NetGear

GS724T

GS752TXS



Nortel

2526T

4526GTX-PWR

470-24T

6500



Overture

ISG 400

ISG 5000



QLOGIC

SanBox 3810

SanBox 5600



Sun Microsystems

Sun Ray 2FS



Telco Systems

T-Marc 280

T-Marc 3348S

Click HERE to download the Approved Networks Test Bed Sheet

SUPPORT PROGRAMS

Lifetime Warranty

Our Transceivers, DACs and Fiber Optic cables come with an industry leading lifetime warranty and toll-free technical support.

telco Certified

Our entire product line has been certified compliant within the telco environment and appears on the AVL of most major telcom and technology corporations.

PROVIDING quality support AND SERVICES FOR our telco partners

In addition to our extensive product line, our customer service has earned us a reputation of trust that is unparalleled in the industry. We help clients navigate the complexities of their hardware architecture to guarantee compliance throughout the network. Our service success is proven by the loyalty and support of some of the largest data centers in the world, including: telecommunications, corporations and government agencies.

warranty safe

Our products will not void your OEM warranty, and they present zero service-level risk. Federal law protects you and your rights.

In-system tested

All products are tested within their intended system in Approved Networks’s Environmental Test Lab ensuring 100% guaranteed compatibility.

Network Emulation

All our products are tested using the Shenick Test and Measurement System which provides comprehensive performance analysis on modules during emulated application flows.



Custom Programmed

All our networking products are programmed
in-house and can be custom coded with client name, part number and serial number.

Same Day Shipping

Approved Networks maintain an extensive inventory which ensures same day shipping on 98%
of orders placed before 2:00PST.

Evaluation Program

Approved Networks allows you to verify the quality and reliability of our products by offering an industry leading 30-day evaluation program.

Approved Networks transceivers support the following:

  • 3Com | Adtran | Adva | Aerohive | Alcatel | Allied Telesis | Alvarion | Arista | Aruba
  • Asus | Avaya| Blade Networks | Brocade | BTI | Calix | Ceragon | Check Point | Chelsio
  • Ciena | Cisco | D-Link | DELL | Delta | ECI Telecom | Enterasys | Extreme | F5 Networks
  • Finisar | Fluke Networks | Force10 | Fortinet | Foundry | FTTX | Fujitsu | Gigamon | H3C
  • HP | Huawei | IBM | Intel | JDSU | Juniper | Linksys | Marconi | Mellanox | Meraki | MRV
  • Netgear | Nokia | Nortel | Nutanix | Oplink | Overture | Palo Alto | Pannaway | Planet
  • Rad Group | Redback | Riverbed | Riverstone | Sixnet | SMC | Sun | Sunrise Telecom
  • Telco Systems | TP Link | Transition Networks | TRENDnet | Ubiquiti | XKL | ZTE | Zyxel

Install with confidence

& cost effectiveness.

TRANSCEIVERS

Quality telcom optics - tested, trusted & Approved.

Approved Networks takes pride in taking a proactive roll in qualifying and validating our components and finished goods before programming even begins on our optics. To guarantee 100% compatibility and compliance, Approved Networks' transceivers are coded to meet the specific requirements of the switch, server or router in which it will be installed. Approved Networks engineers then test the optic in the system with the most commonly used applications and operating systems. Since transceiver performance varies slightly between contract manufacturers, Approved Networks’ quality standards call for in-system qualification of every new solution, running thousands of hours at full network emulation.



Since 2002, Approved Networks and its companies have been known for the highest quality optical products available. Quality has always been the reason for the tremendous growth of Approved Networks' presence within the telecommunications industry. Approved Networks recognizes the important role that optics and connectivity products play in the networking landscape and take the necessary steps to guarantee a reliable product.

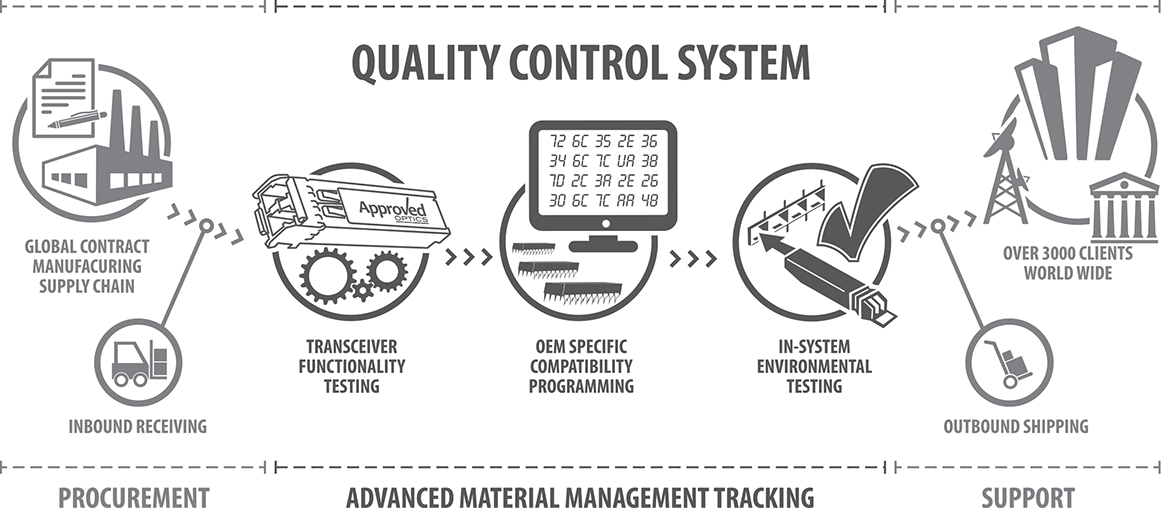

Approved Networks’ quality system provides our clients with:

Quality – Approved Networks qualifies components and tests every transceiver at all stages of the process.

Reliability – Approved Networks’s return and failure rates are the lowest in the industry. Return rate on modules shipped is 0.010% (1 in 9890). Failure rate on modules deployed in the field is .0029%

(1 in 33,600). These low rates are due to Tier 1 CMs, programming & in-house testing. This means that most failures/defects are found in process.

Compliance – Approved Networks programs and tests our products for guaranteed compatibility and backs this process up with a lifetime warranty.

Expedience – Approved Networks keeps a complete line of tested optical solutions at competitive prices for thousands of networking switches, routers and servers, in stock and ready to ship.

Stability – Approved Networks has grown into the largest independent third-party optics providers in the industry. We have been an established, quality solution for over a decade.

Industry Leadership – Approved Networks takes pride in its active role within our industry and its organizations, participating as a voice of authority and education at all levels of the networking technology market.

Expertise – Approved Networks’s experienced technical engineering staff has contributed to the development of both first-to-market products (as the industry’s first third party 40G IR4 MPO), as well as customized solutions to help clients build the highest-performing networks in the world.

Click HERE to download the Approved
Optical Technical Specifications Guide

SFP TRANSCEIVERS

Type Form Factor Wave Length Data Rate Max Distance Connectivity TX Min (dBm) TX Max (dBm) RX Sensitivity RX Overload Link Budget
SFP Copper T SFP-T100 Copper 10/100 100m Cat 5 - - - - -
SFP Copper T SFP-TM Copper 10/100/1000 100m Cat 5 - - - - -
SFP Copper T SFP-T Copper 1000 100m Cat 5 - - - - -
SFP OC3 SFP-OC3-SRD 1310 155 2Km MM -20 -14 -31 -5 17
SFP OC3 SFP-OC3-SR 1310 155 2Km SM -15 -8 -23 -8 17
SFP OC3 SFP-OC3-IR1 1310 155 20Km SM -8 -14 -28 -8 14
SFP OC3 SFP-OC3-LR1 1310 155 40Km SM 0 -5 -34 -10 29
SFP OC3 SFP-OC3-LR2 1550 155 80Km SM 0 -5 -34 -10 29
SFP OC3 BIDI SFP-OC3B34-15 1310/1490 155 15km SM -15 -8 -24 -8 10
SFP OC3 BIDI SFP-OC3B43-15 1490/1310 155 15km SM -15 -8 -24 -8 10
SFP OC3 BIDI SFP-OC3B34-40 1310/1490 155 40km SM 3 -2 -24 -10 22
SFP OC3 BIDI SFP-OC3B43-40 1490/1310 155 40km SM 3 -2 -24 -10 22
SFP OC3 BIDI SFP-OC3B35-15 1310/1550 155 15km SM -15 -8 -24 -8 10
SFP OC3 BIDI SFP-OC3B53-15 1550/1310 155 15km SM -15 -8 -24 -8 10
SFP OC3 BIDI SFP-OC3B35-40 1310/1550 155 40km SM 3 -2 -24 -10 22
SFP OC3 BIDI SFP-OC3B53-40 1550/1310 155 40km SM 3 -2 -24 -10 22
SFP OC3 BIDI SFP-OC3B45-15 1490/1550 155 15km SM -15 -8 -24 -8 10
SFP OC3 BIDI SFP-OC3B54-15 1550/1490 155 15km SM -15 -8 -24 -8 10
SFP OC3 BIDI SFP-OC3B45-40 1490/1550 155 40km SM 3 -2 -24 -10 22
SFP OC3 BIDI SFP-OC3B54-40 1550/1490 155 40km SM 3 -2 -24 -10 22
SFP OC3 BIDI SFP-OC3B45-80 1490/1550 155 80km SM 0 5 -28 -3 26
SFP OC3 BIDI SFP-OC3B54-80 1550/1490 155 80km SM 0 5 -28 -3 26
SFP OC12 SFP-OC12-SRD 850 622 2Km MM -20 -14 -31 -6 17
SFP OC12 SFP-OC12-SR 1310 622 2Km SM/MM -15 -8 -31 -8 17
SFP OC12 SFP-OC12-IR1 1310 622 20Km SM -8 -15 -28 -8 14
SFP OC12 SFP-OC12-LR1 1310 622 40Km SM 2 -3 -28 -8 29
SFP OC12 SFP-OC12-LR2 1550 622 80Km SM 2 -3 -28 -8 29
SFP OC12 BIDI SFP-OC12B34-15 1310/1490 155 15km SM 0 5 -28 -3 28
SFP OC12 BIDI SFP-OC12B43-15 1490/1310 155 15km SM 0 5 -28 -3 28
SFP OC12 BIDI SFP-OC12B34-40 1310/1490 155 40km SM -2 3 -27 -9 22
SFP OC12 BIDI SFP-OC12B43-40 1490/1310 155 40km SM -2 3 -27 -9 22
SFP OC12 BIDI SFP-OC12B35-15 1310/1550 155 15km SM 0 5 -28 -3 28
SFP OC12 BIDI SFP-OC12B53-15 1550/1310 155 15km SM 0 5 -28 -3 28
SFP OC12 BIDI SFP-OC12B35-40 1310/1550 155 40km SM -2 3 -27 -9 22
SFP OC12 BIDI SFP-OC12B53-40 1550/1310 155 40km SM -2 3 -27 -9 22
SFP OC12 BIDI SFP-OC12B45-15 1490/1550 155 15km SM 0 5 -28 -3 28
SFP OC12 BIDI SFP-OC12B54-15 1550/1490 155 15km SM 0 5 -28 -3 28
SFP OC12 BIDI SFP-OC12B45-40 1490/1550 155 40km SM -2 3 -27 -9 22
SFP OC12 BIDI SFP-OC12B54-40 1550/1490 155 40km SM -2 3 -27 -9 22
SFP OC12 BIDI SFP-OC12B45-80 1490/1550 155 80km SM 0 5 -28 -3 26
SFP OC12 BIDI SFP-OC12B54-80 1550/1490 155 80km SM 0 5 -28 -3 26
SFP OC48 SFP-OC48-SR 1310 2.5 2Km SM/MM -10 -3 -18 -3 15
SFP OC48 SFP-OC48-IR1 1310 2.5 20Km SM 0 -5 -18 -10 13
SFP OC48 SFP-OC48-LR1 1310 2.5 40Km SM 3 -2 -28 -9 26
SFP OC48 SFP-OC48-LR2 1550 2.5 80Km SM 5 0 -28 -9 28
SFP OC48 BIDI SFP-OC48B34-15 1310/1490 155 15km SM -5 0 -18 0 13
SFP OC48 BIDI SFP-OC48B43-15 1490/1310 155 15km SM -5 0 -18 0 13
SFP OC48 BIDI SFP-OC48B34-40 1310/1490 155 40km SM -2 3 -27 -9 22
SFP OC48 BIDI SFP-OC48B43-40 1490/1310 155 40km SM -2 3 -27 -9 22
SFP OC48 BIDI SFP-OC48B35-15 1310/1550 155 15km SM -5 0 -18 0 13
SFP OC48 BIDI SFP-OC48B53-15 1550/1310 155 15km SM -5 0 -18 0 13
SFP OC48 BIDI SFP-OC48B35-40 1310/1550 155 40km SM -2 3 -27 -9 22
SFP OC48 BIDI SFP-OC48B53-40 1550/1310 155 40km SM 3 -2 -24 -9 22
SFP OC48 BIDI SFP-OC48B45-15 1490/1550 155 15km SM -5 0 -18 0 13
SFP OC48 BIDI SFP-OC48B54-15 1550/1490 155 15km SM -5 0 -18 0 13
SFP OC48 BIDI SFP-OC48B45-40 1490/1550 155 40km SM -2 3 -27 -9 22
SFP OC48 BIDI SFP-OC48B54-40 1550/1490 155 40km SM -2 3 -27 -9 22
SFP OC48 BIDI SFP-OC48B45-80 1490/1550 155 80km SM 3 -2 -28 0 26
SFP OC48 BIDI SFP-OC48B54-80 1550/1490 155 80km SM 3 -2 -28 0 26
1GB SFP SFP-SX 850 1.25 220/500m MM -9 -2 -17 -3 8
1GB SFP SFP-LX 1310 1.25 10km SM -9 -3 -23 -3 14
1GB SFP SFP-EX 1310 1.25 40km SM -2 3 -23 -3 21

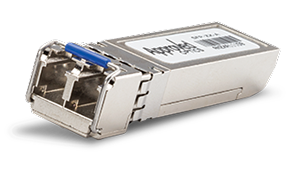

1GB SFP SFP-ZX 1550 1.25 80km SM -2 3 -24 -3 22
1GB SFP SFP-ZX-120 1550 1.25 120km SM 0 5 -32 -10 32
1GB SFP SFP-ZX-160 1550 1.25 160km SM 3 7 -37 -10 40
SFP BIDI SFP-BX34-10 1310/1490 1.25 10km SM -9 -3 -23 -3 14
SFP BIDI SFP-BX43-10 1490/1310 1.25 10km SM -9 -3 -23 -3 14
SFP BIDI SFP-BX34-40 1310/1490 1.25 40km SM -2 3 -23 -3 21
SFP BIDI SFP-BX43-40 1490/1310 1.25 40km SM -2 3 -23 -3 21
SFP BIDI SFP-BX35-10 1310/1550 1.25 10km SM -9 -3 -23 -3 14
SFP BIDI SFP-BX53-10 1550/1310 1.25 10km SM -9 -3 -23 -3 14
SFP BIDI SFP-BX35-40 1310/1550 1.25 40km SM -2 3 -23 -3 21
SFP BIDI SFP-BX53-40 1550/1310 1.25 40km SM -2 3 -23 -3 21
SFP BIDI SFP-BX45-10 1490/1550 1.25 10km SM -9 -3 -23 -3 14
SFP BIDI SFP-BX54-10 1550/1490 1.25 10km SM -9 -3 -23 -3 14
SFP BIDI SFP-BX45-40 1490/1550 1.25 40km SM -5 0 -23 -3 18
SFP BIDI SFP-BX54-40 1550/1490 1.25 40km SM -5 0 -23 -3 18
SFP BIDI SFP-BX45-80 1490/1550 1.25 80km SM -2 3 -25 -8 23
SFP BIDI SFP-BX54-80 1550/1490 1.25 80km SM -2 3 -25 -8 23
SFP BIDI SFP-BX17-80 1510/1570 1.25 80km SM -2 3 -25 -8 23
SFP BIDI SFP-BX71-80 1570/1510 1.25 80km SM -2 3 -25 -8 23
SFP BIDI SFP-BX17-120 1510/1570 1.25 120km SM 0 5 -33 -8 33
SFP BIDI SFP-BX71-120 1570/1510 1.25 120km SM 0 5 -33 -8 33
SFP GPON GPON-B34-20 1310/1490 1.25/2.5 20km SM ONU 0.5 5 -28 -8 28
SFP GPON GPON-B43-20 1490/1310 2.5/1.25 20km SM OLT 1.5 5 -28 -8 30
SFP GPON GPON-C43-20 1490/1310 2.5/1.25 20km SM OLT 4 7 -31 -12 35
SFP CWDM CWDM-SFP-xx-40 1270-1610 1.25 40km SM -5 0 -24 -3 19
SFP CWDM CWDM-SFP-xx-80 1270-1610 1.25 80km SM 0 5 -24 -3 24
SFP CWDM CWDM-SFP-xx-120 1470-1610 1.25 120km SM 0 5 -35 -10 35
SFP DWDM DWDM-SFP-xx-40 C-Band 1.25 40km SM 0 4 -24 -9 24
SFP DWDM DWDM-SFP-xx-80 C-Band 1.25 80km SM 0 4 -30 -7 30
SFP DWDM DWDM-SFP-xx-120 C-Band 1.25 120km SM 2 7 -35 -10 37

CSFP TRANSCEIVERS

Type Form Factor Wave Length Data Rate Max Distance Connectivity TX Min (dBm) TX Max (dBm) RX Sensitivity RX Overload Link Budget
CSFP 1GB CSFP-BXU-10 1310/1490 1.25 10km SM -9 -3 -23 -3 11
CSFP 1GB CSFP-BXD-10 1490/1310 1.25 10km SM -9 -3 -23 -3 11
CSFP 1GB CSFP-BXU35-10 1310/1550 1.25 10km SM -9 -3 -23 -3 11
CSFP 1GB CSFP-BXD53-10 1550/1310 1.25 10km SM -9 -3 -23 -3 11
CSFP 1GB CSFP-BXU-20 1310/1490 1.25 20km SM -2 3 -23 -3 13
CSFP 1GB CSFP-BXD-20 1490/1310 1.25 20km SM -2 3 -23 -3 13
CSFP 1GB CSFP-BXU35-20 1310/1550 1.25 20km SM -2 3 -23 -3 13
CSFP 1GB CSFP-BXD53-20 1550/1310 1.25 20km SM -2 3 -23 -3 13
CSFP 1GB CSFP-BXU-40 1310/1490 1.25 40km SM -2 3 -23 -3 21
CSFP 1GB CSFP-BXD-40 1490/1310 1.25 40km SM -2 3 -23 -3 21

XENPAK TRANSCEIVERS

Type Form Factor Wave Length Data Rate Max Distance Connectivity TX Min (dBm) TX Max (dBm) RX Sensitivity RX Overload Link Budget
10GB XENPAK XENPAK-SR 850 10.313 300m MM -5 5 -9.9 0.5 4.9
10GB XENPAK XENPAK-LR 1310 10.313 10km SM -5 0 -10.3 0.5 5.3
10GB XENPAK XENPAK-ER 1550 10.313 40km SM -1 3 -10.3 0.5 9.3
10GB XENPAK XENPAK-ZR 1550 10.313 80km SM 0 4 -27 -7 27
XENPAK CWDM CWDM-XENPAK-xx-40 1470-1610 9.9-11.3 40km SM -1 2 -15.8 -1 14.8
XENPAK CWDM CWDM-XENPAK-xx-80 1470-1610 9.9-11.3 80km SM 0 4 -24 -7 24
XENPAK DWDM DWDM-XENPAK-xx-40 C-Band 9.9-11.3 40km SM -1 2 -15.8 -1 14.8
XENPAK DWDM DWDM-XENPAK-xx-80 C-Band 9.9-11.3 80km SM -1 3 -24 -7 23

X2 TRANSCEIVERS

Type Form Factor Wave Length Data Rate Max Distance Connectivity TX Min (dBm) TX Max (dBm) RX Sensitivity RX Overload Link Budget
10GB X2 X2-SR 850 10.313 300m MM -5 -1 -11.1 -1 6.1
10GB X2 X2-LR 1310 10.313 10km SM -8.2 0.5 -12.6 0.5 4.4
10GB X2 X2-ER 1550 10.313 40km SM -1 3 -11.4 0.5 10.4
10GB X2 X2-ZR 1550 10.313 80km SM 0 4 -23 0.5 23
X2 CWDM CWDM-X2-xx-40 1470-1610 9.9-11.3 40km SM -1 2 -15.8 -1 14.8
X2 CWDM CWDM-X2-xx-80 1470-1610 9.9-11.3 80km SM 0 4 -24 -7 24
X2 DWDM DWDM-X2-xx-40 C-Band 9.9-11.3 40km SM -1 2 -15.8 -1 14.8
X2 DWDM DWDM-X2-xx-80 C-Band 9.9-11.3 80km SM -1 3 -24 -7 23

XFP TRANSCEIVERS

Type Form Factor Wave Length Data Rate Max Distance Connectivity TX Min (dBm) TX Max (dBm) RX Sensitivity RX Overload Link Budget
10GB XFP XFP-SR 850 10.3125 300m MM -7 -3 -11 0.5 4
10GB XFP XFP-LR-OC192 1310 9.9-11.3 10km SM -8.2 0.5 -14.4 0.5 6.2
10GB XFP XFP-ER-OC192 1550 9.9-11.3 40km SM -1 3 -19 -1 18
10GB XFP XFP-ZR-OC192 1550 9.9-11.3 80km SM -1 4 -24 -7 23
XFP BIDI XFP-BXU-10 1270/1330 9.9-11.3 10km SM -5 0 -14 0.5 9
XFP BIDI XFP-BXD-10 1330/1270 9.9-11.3 10km SM -5 0 -14 0.5 9
XFP BIDI XFP-BXU-20 1270/1330 9.9-11.3 20km SM -2 3 -14 0.5 12
XFP BIDI XFP-BXD-20 1330/1270 9.9-11.3 20km SM -2 3 -14 0.5 12
XFP BIDI XFP-BXU-40 1270/1330 9.9-11.3 40km SM 1 5 -14 0.5 15
XFP BIDI XFP-BXD-40 1330/1270 9.9-11.3 40km SM 1 5 -14 0.5 15
XFP CWDM CWDM-XFP-xx-10 1470-1610 9.9-11.3 40km SM -4.8 0.5 -12.6 0.5 7.8
XFP CWDM CWDM-XFP-xx-40 1470-1610 9.9-11.3 40km SM -1 3 -14 0.5 13
XFP CWDM CWDM-XFP-xx-80 1470-1610 9.9-11.3 80km SM 0 4 -25 0.5 25
XFP DWDM DWDM50-XFP-xx-40 50GHz C-Band 9.9-11.3 40km SM -1 3 -19 0.5 18
XFP DWDM DWDM50-XFP-xx-80 50GHz C-Band 9.9-11.3 80km SM -1 4 -27 -7 26
XFP DWDM DWDM-XFP-xx-40 100GHz C-Band 9.9-11.3 40km SM -1 3 -19 0.5 18
XFP DWDM DWDM-XFP-xx-80 100GHz C-Band 9.9-11.3 80km SM -1 4 -27 -7 26
XFP Tunable XFP-TUNE-80 C-Band 9.9-11.3 80km SM -1 3 -26 -5 25

SFP+ TRANSCEIVERS

Type Form Factor Wave Length Data Rate Max Distance Connectivity TX Min (dBm) TX Max (dBm) RX Sensitivity RX Overload Link Budget
10GB SFP+ SFP10G-SR 850 10.3125 300m MM -5 -1 -11.1 0.5 6.1
10GB SFP+ SFP10G-LRM 1310 9.9-11.3 220m MM -6.5 0.5 -10 1.5 3.5
10GB SFP+ SFP10G-LR 1310 9.9-11.3 10km SM -8.2 0.5 -10.3 0.5 6.2
10GB SFP+ SFP10G-LR20 1310 9.9-11.3 20km SM -3 1 -14.4 0.5 11.4
10GB SFP+ SFP10G-LR40 1310 9.9-11.3 40km SM -1 4 -15 0.5 14
10GB SFP+ SFP10G-LR70 1310 9.9-11.3 70km SM 2 5 -20 -8 22
10GB SFP+ SFP10G-ER 1550 9.9-11.3 40km SM -4.7 4 -14.1 -1 9.4
10GB SFP+ SFP10G-ZR 1550 9.9-11.3 80km SM 0 5 -20 -8 20
SFP+ BIDI SFP10G-BXU-10 1270/1330 9.9-11.3 10km SM -5 0 -14 0.5 9
SFP+ BIDI SFP10G-BXD-10 1330/1270 9.9-11.3 10km SM -5 0 -14 0.5 9
SFP+ BIDI SFP10G-BXU-20 1270/1330 9.9-11.3 20km SM -2 3 -14 0.5 12
SFP+ BIDI SFP10G-BXD-20 1330/1270 9.9-11.3 20km SM -2 3 -14 0.5 12
SFP+ BIDI SFP10G-BXU-40 1270/1330 9.9-11.3 40km SM 1 5 -15 0.5 16
SFP+ BIDI SFP10G-BXD-40 1330/1270 9.9-11.3 40km SM 1 5 -15 0.5 16
SFP+ BIDI SFP10G-BXU-60 1270/1330 9.9-11.3 60km SM 1 6 -20 -1 21
SFP+ BIDI SFP10G-BXD-60 1330/1270 9.9-11.3 60km SM 1 6 -20 -1 21
SFP+ CWDM CWDM-SFPP-xx-10 1270-1330 9.9-11.3 10km SM -1 4 -14 -1 13
SFP+ CWDM CWDM-SFPP-xx-40 1470-1610 9.9-11.3 40km SM -1 4 -14 -1 13
SFP+ CWDM CWDM-SFPP-xx-80 1470-1610 9.9-11.3 80km SM 0 4 -21 -8 21
SFP+ Tunable SFPP-TUNE-80 C-Band 9.9-11.3 80km SM -1 3 -26 -7 25
SFP+ DWDM DWDM50-SFPP-xx-40 50GHz C-Band 9.9-11.3 40km SM -4.7 4 -14.1 -1 9.4
SFP+ DWDM DWDM50-SFPP-xx-80 50GHz C-Band 9.9-11.3 80km SM 0 5 -20 -8 20
SFP+ DWDM DWDM-SFPP-xx-40 100GHz C-Band 9.9-11.3 40km SM -4.7 4 -14.1 -1 9.4
SFP+ DWDM DWDM-SFPP-xx-80 100GHz C-Band 9.9-11.3 80km SM 0 5 -20 -8 20

QSFP+ TRANSCEIVERS

Type Form Factor Wave Length Data Rate Max Distance Connectivity TX Min (dBm) TX Max (dBm) RX Sensitivity RX Overload Link Budget
40G QSFP+ (4 X 10) QSFP-SR4 850 41.25 100m MM -7.6 -1 -9.5 5 2
40G QSFP+ (4 X 10) QSFP-CSR4 850 41.25 300m MM -7.3 0 -9.9 0 2.4
40G QSFP+ (4 X 10) QSFP-IR4 1270-1330 41.25 2km SM -10 2.3 -13.7 2.3 4
40G QSFP+ (4 X 10) QSFP-LR4 1270-1330 41.25 10km SM -7 2.3 -11.5 2.3 4.5
40G QSFP+ (4 X 10) QSFP-PLRM 1270-1330 41.25 10km SM -7 2.3 -11.5 2.3 4.5
100G QSFP+ (4x28) QSFP28-SR4 850 103.1-111.8 100m MM -9.1 2.4 -11 2.4 1.9
100G QSFP+ (4x28) QSFP28-LR4 1290-1310 103.1-111.8 10km SM -2.7 2.9 -21.1 2.5 18.4

CFP/CXP TRANSCEIVERS

Type Form Factor Wave Length Data Rate Max Distance Connectivity TX Min (dBm) TX Max (dBm) RX Sensitivity RX Overload Link Budget
40G CFP (4x10) CFP-40G-SR4 850 39.8-44.8 100m MM -7.5 2.5 -9.9 1 2.4
40G CFP (4x10) CFP-40G-CSR4 850 39.8-44.8 300m MM -6.5 2.5 -10 1 3.5
40G CFP (4x10) CFP-40G-IR 1530-1565 39.8-44.8 2km SM -5.5 3 -11 1.5 5.5
40G CFP (4x10) CFP-40G-LR4 1270-1330 39.8-44.8 10km SM -4 3.5 -11.5 2.3 7.5
40G CFP (4x10) CFP-40G-LR4-20 1270-1330 39.8-44.8 20km SM -3.5 4 -15.5 2.3 12
40G CFP (4x10) CFP-40G-ER4 1270-1330 39.8-44.8 40km SM -1 4 -21 3.8 20
100G CFP (10x10) CFP-100G-SR10 850 103.1-111.8 100m MM -8 1 -9.9 1 1.9
100G CFP (10x10) CFP-100G-CSR10 850 103.1-111.8 300m MM -8 1 -9.9 1 1.9
100G CFP (10x10) CFP-100G-LR10 1521-1597 103.1-111.8 10km SM -5.8 3 -11.7 1.5 5.9
100G CFP (10x10) CFP-100G-LR10-20 1521-1597 103.1-111.8 20km SM -4.1 3 -13.7 1.5 9.6
100G CFP (10x10) CFP-100G-ER10 1521-1597 103.1-111.8 40km SM -2.7 2.9 -21.1 2.5 18.4
100G CFP (4x28) CFP-100G-SR4 850 103.1-111.8 100m MM -7.5 2.5 -9.9 1 2.4
100G CFP (4x28) CFP-100G-CSR4 850 103.1-111.8 300m MM -7.5 2.5 -9.9 1 2.4
100G CFP (4x28) CFP-100G-LR4-10 1295-1310 103.1-111.8 10km SM -4.3 4.5 -10.6 1.5 6.3
100G CFP (4x28) CFP-100G-LR4 1295-1310 103.1-111.8 20km SM -2.5 2.9 -10.6 1.5 8.1
100G CFP (4x28) CFP-100G-ER4 1295-1310 103.1-111.8 40km SM -2.7 2.9 -20.9 2.5 18.2
100G CFP Tunable CFP-100G-DWDM DWDM 103.1-111.8 100km SM -2.7 2.9 -21.3 2.5 18.6
100G CXP (12x10.5) CXP-SR10 850 12.7-126 300m MM -7.6 2.4 -9.5 -5.4 1.9

Purchase from our trusted telco partners

Approved Networks understands the convenience and value telecommunications clients receive when purchasing through distribution and value-added suppliers. For those clients, Approved Networks is proud to work with distribution partners that uphold the same levels of customer service and support as we do. Whether you purchase through one of our trusted partners or directly from Approved, we know you will receive the highest quality product and support.

Purchase directly from approved networks

For clients that wish to purchase direct, Approved Networks is happy to offer easy online ordering and/or will dedicate a connectivity specialist to your account. Your connectivity specialist can help you with any questions, pricing or purchases.

purchase

Submitting Form...

The server encountered an error.

Form received.

United States Corporate Offices

  • Los Angeles, California
  • Orange County, California

SALES

Toll Free: 800.590.9535

sales@approvednetworks.com

private label Services

Toll Free: 800.590.9535

pl@approvednetworkss.com

technical support

Toll Free: 800.590.9535

techsupport@approvednetworks.com

CONTACT

Approved Networks, Inc Online Privacy Statement

Approved Networks respects your right to privacy. We only make use of individual specific information in order to enable to serve you better. "Individual specific information" is information that enables us to specifically identify you, including your E-mail address, name, position and address. Approved Networks uses this information to customize your experience on our Web site and possibly to send you information that might explicitly interest you.



Our policy regarding use of individual specific information supplied to us or collected via your experience on our Web site covers these areas:



  1. Notice and Disclosure Our Online Privacy Statement is intended to make you aware of how we collect and use your information. We collect the following information regarding visitors to our Web site: domain name, name, page view information, information that you freely submit-including survey information, E-mail address or site registrations-and your communication medium preference. We do make individual specific information available to third parties, including business partners, for marketing purposes. We also use this information to contact our customers for marketing purposes.
  2. Choice/Consent New registrants to Approved Networks' Web site have the choice to opt out of having individual specific information provided in the registration process used for any reason unrelated to the purpose for which the information was provided. We are striving for additional ways for you to limit the use of your individual specific information. When you sign up for our E-mail list, you will receive instructions for removing your E-mail address from the list. Access to certain Web pages requires a login and password. The use of these Web pages, and the information or programs downloadable from those sites, might be governed by written agreements between your employer and Approved Networks. Your individual specific information might be retained by Approved Networks to verify compliance with the agreement, to track software downloads or track use of other applications.
  3. Data Security We are committed to taking all reasonable steps to protect individual specific information.
  4. Use of Cookies A cookie is a small data file that certain Web sites place on your hard drive when you visit. A cookie might contain information such as a user ID that the site uses to track the pages you've been to, but the only personal information a cookie might contain is information that you supply. A cookie cannot access data on your computer or read cookies from other sites. Approved Networks uses cookies on some parts of this Web site to track visitor traffic patterns to determine what information is useful to our users and to see how navigable our Web site structure is in helping users find that information. We do not correlate this information with data about individual users, nor do we share this information or sell it to any third parties. If you prefer not to receive cookies, reset your browser to warn you and refuse to accept them when your browser alerts you, or you can refuse all cookies by turning them off in your browser. You do not need to have cookies turned on to use part of Approved Networks' Web site.
